4-level expandable list views

A while ago I got a question if 3-level expandable list views can be implemented in Android. Android does not explicitly support it but the flexibility of Android UI widget framework provides a relatively simple implementation option: second-level expandable list views are to be inserted into the first-level expandable list view as child views. There was a blog post with an example program and everybody was happy. Even then I made a note that I don't agree with the approach from the UI point of view because the display becomes unnecessarily messy.

Now there was a comment at that blog post whether 4-level lists are possible. Of course they are possible, it is just not a good UI design. But I guess, you better try it yourself if you don't believe me. The principle is the same (expandable lists embedded as children of higher-level expandable lists), it is just much more complex to make sure that everything is recalculated correctly for every event. In order to follow the operation, I left a good amount of debugging code in the project.

Click here to access the example program.

Example application for accelerometer/compass processing on Android

I hope you are well prepared by now what you can expect from the compass-accelerometer sensor fusion - if not, please read my thoughts about the limitations. This time we are going to see, how to compensate the accelerometer with the compass.

The idea is very simple. The accelerometer and the compass both measure vectors fixed to the Earth. These vectors are different - gravity and ambient magnetic field - but we hope that their angle is constant because they are both fixed to the same coordinate system. But while the accelerometer is sensitive to the motion acceleration, the compass is not. If we manage to rotate and scale the magnetic field vector into the gravity vector, we have a reference while the accelerometer is subject to motion acceleration and we can extract the motion acceleration. Plus, we have a reliable gravity vector and an "in motion" indication.

So the process is the following:

• Calibrate the compass to the location and figure out the offsets we discussed in the limitation part. Also measure the reference gravity vector length.
• If we find that the acceleration vector's length is close enough to the reference gravity vector length, we assume that this means "no motion" (see the discussion of this issue here). Find then the rotation axis and angle to rotate the compass vector into the acceleration vector. We call these values reference rotation axis, reference rotation angle, reference magnetic vector and reference acceleration vector, respectively. Keep updating these values as long as we are in "no motion" state.

• If we find, that the acceleration vector's length is significantly shorter or longer than the reference gravity vector length, we are in "motion" state. Then we use the previously recorded reference values and the actual magnetic field value measured by the compass to calculate a simulated gravity vector. Using the measured acceleration vector and the simulated gravity vector, we extract the motion acceleration vector.

Simple, isn't it? Yes, it is, the only part requiring attention is the rotation bit. The task is the following: we have a reference magnetic vector and a reference acceleration vector from an earlier measurement. Then the acceleration vector length was close to reference gravity so we can assume that the reference acceleration vector mostly contains gravity component. Now we have a current magnetic vector and a current acceleration vector. The acceleration vector, however, seems to contain motion acceleration component too. How to simulate a gravity vector from the current magnetic vector?

The steps are:

• Calculate the rotation operation that rotates the reference magnetic vector to the reference acceleration vector. The rotation operation has two components: an axis around which one vector is rotated to the other and a rotation angle. The rotation axis is the vector cross product of the two vectors. The angle can be obtained by resolving the equation of two different representations of the two vectors' dot product. This yields reference rotation axis and reference rotation angle.

• The reference rotation axis nicely rotates the reference magnetic vector to the reference acceleration vector but we need to apply the rotation to the current magnetic vector. We need a new rotation axis for this and we obtain it by rotating the reference rotation axis by the rotation operation that rotates reference magnetic vector to the current magnetic vector. This yields a current rotation axis.
• Then we simply rotate the current magnetic vector around the current rotation axis with the reference rotation angle. This yields a simulated gravity vector. We also have to scale this vector so that its length is equal to the reference gravity.

Once we are done with this, we can subtract the simulated gravity vector from the current acceleration vector and we have the motion acceleration.

Let's see the example Android program then that implements all this!

The example program can be downloaded from here.

The program is really just a variation of the gyroscope/accelerometer example program. The main difference is that when the sampling is started, you have to calibrate the compass first. The application instructs you, which edge/side of the device should be turned toward the Earth and the calibration steps already passed disappear from the screen. This is really a major annoyance compared to the gyroscope version but that's the price we pay for having a widely available sensor instead of the rare gyroscope.

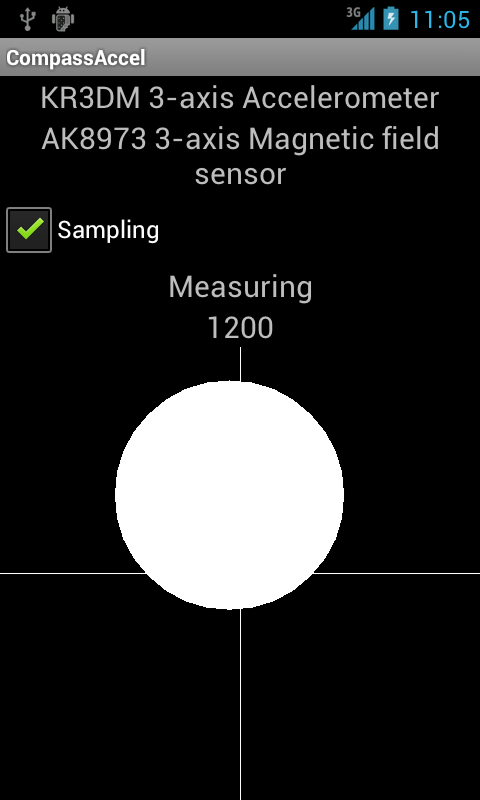

After the calibration you see the familiar ball that visualizes the measured motion acceleration (the size of the ball is proportional with the z component of the motion acceleration). As with the gyroscope case, the motion acceleration is rotated into the Earth's coordinate system. If you need the motion acceleration in the device's coordinate system, just remove the rotateToEarth() method invocation.

If you set DEBUG to true in SamplingService.java, the program creates a (potentially large) file containing measurement data as /sdcard/capture.csv. You can analyze it with this Sage script.

Now we have two methods of extracting motion acceleration. The gyroscope is more convenient because it is not subject to external magnetic fields or metal objects but is available in less devices. There are more hassles with the compass but at the end it works nicely too. The next step is to recognize movement patterns in the 3D motion acceleration vectors.

PHONE_STATE broadcast and 4.0.3

Anybody out there who has experience with android.intent.action.PHONE_STATE broadcasts and 4.0.3? I wrote this simple application that is just a receiver for this broadcast intent. It works beautifully on 2.2 but does not capture any broadcasts on a Nexus S with the official Google 4.0.3 firmware. The manifest has the permission (XML mangling because of the blog engine):

    [uses-permission android:name="android.permission.READ_PHONE_STATE"/]

and the receiver:

       [receiver android:name=".PhoneIntentReceiver"
            android:enabled="true"
            android:exported="true"]
            [intent-filter]
                [action android:name="android.intent.action.PHONE_STATE" /]
            [/intent-filter]

        [/receiver]

Is this a 4.0.3 bug?

Compensating accelerometer with the compass - the limitations

In the previous parts of our sensor processing series, we have seen how to use the gyroscope to separate the motion and the gravity acceleration components measured by the accelerometer. But gyroscope-equipped phones are rare. Can we have a "poor man's gyroscope" that is more widely deployed in today's devices?

Let's reiterate the problem. We have an accelerometer that is exposed to two main kinds of accelerations: gravity and motion acceleration. Gravity acceleration is always present. Sadly, its direction is not constant but changes with the direction of the device. If the device is subject to motion acceleration (e.g. the user is walking), motion acceleration is added to the gravity component. Motion acceleration vector changes dynamically due to the movement phases. If we have to assume that motion acceleration is present but we don't know the gravity acceleration vector, separating the gravity and motion acceleration components is impossible. We need another sensor therefore and we made a good use of the gyroscope so far.

The other evident sensor that can be used to determine the Earth's coordinate system relative to the device coordinate system is the compass or magnetic sensor. Compass is attractive because it is widely available in today's devices. Unfortunately it has certain drawbacks that make it more inconvenient to support the accelerometer than gyroscope. In this part I will go through the characteristics of the compass to set the expectations before we start to discuss, how to use it together with the accelerometer.

First the basics. The compass measures the magnetic field the device is exposed to. This magnetic field has many components. We are most interested in the Earth's magnetic field but obviously there are other disturbances, e.g. metal objects, magnets, magnetic fields generated by electric devices. The Earth's magnetic field is not trivial either. Contrary to a belief I hear often, the Earth's magnetic field points mostly downward, toward the center of the Earth. The effect is called magnetic inclination and it means that the Earth's magnetic field has a varying degree relative to the Earth's surface. Where I live, the inclination is  about 70 degrees. The component that compasses measure to find the "North" (more exactly: magnetic North) is just the x and y components of the magnetic field which are smaller than the z component.

External magnetic fields can make measuring the Earth's magnetic field virtually impossible. The graph below shows an extreme case when I started compass sampling and walked into an underground train that eventually left the station.

The x axis is the sample count (proportional to time), the y axis is the length of the magnetic field vector measured by the compass. You can see that around 1900 sample count the metal body of the train starts to show its effect. Then around 2400 the electrical traction motors of the train start to operate which generates at its peak 6 times larger magnetic field than the Earth's magnetic field. This magnetic field also varies in time as the power of the motors fall after the train is accelerated to its cruising speed. First rule therefore is to avoid large electric devices, particularly those that vary their power in time.

The compass also has characteristics that make life harder. The two diagrams below show two measurements. In each measurement the device was rotated around its y axis a full circle (see the SensorEvent documentation about device axes in Android) then it was rotated 90 degrees around its x axis and rotated fully around the y axis again. The two measurements were different only in their location. Both were performed in average rooms, relatively far from metal objects (as much as it is possible in average rooms and buildings).
We expect to see neat circles centered around the origo. What we see is that the circles are not centered around the origo but have characteristic offsets. Worse, those offsets are not the same even though the measurements were done with exactly the same device.



 In order to support the accelerometer with the compass, we have to swallow the following two limitations.

• No magnetic fields around that vary in time (typically electric devices, trains, etc.)
• The compass has to be calibrated at each location (by rotating the device around). This pretty much excludes measurements on the move (e.g. walking).

If these limitations are acceptable, however, then we have a reference sensor that can replace the accelerometer while the device is subject to motion acceleration and we can extract motion acceleration. We can implement those Wii-like games even if there is no gyroscope in the phone.

I tell you how in the next part.
